Server Chassis 1U 4 hard drive bays Hot-Swap for motherboard size up to 12"x13" backplane with optional MiniSAS-8087/8643/SATA interface

Model No: BCCRM1404-650S

Features:
Support MB size up to standard EEB(12‘’ x 13’’ )
4 x 3.5’’(2.5" is also compatible) hot-swap drive bays
5 x high-performance removable cooling PWM fans
Support 1U single PSU
6gb/s backplane supports SAS/SATA/SSD/HDD
Additional cages for more hard drives or CD-ROM
Form Factor 1U 19” standard rack-mount
Mainboard EEB (12"x13”)/CEB (12"x10.5”)/ATX (12"x9.6”)/MicroATX (9.6"x9.6")
Dimensions Height: 1.7” (44mm)
Width: 19” (482mm)
Depth: 25.6” (650mm)
Gross Weight: 10.4 kg
Packing(W x H x L): 570mm x 130mm x 840mm
Drive Bays 4*3.5”/2.5” hot-swap SAS/SATA/HDD/SSD
Additional Drive Bays Front: Left: 1 * 2.5" non hot-swap/1 * 9mm CD-ROM
Right:  2 * 2.5" non hot-swap
Expansion Slots N/A
Backplane 1 * 4 ports 12gb/s SATA/HDD/SSD
Backplane(optional) 1 * 1 port 12gb/s MiniSAS8087 /8643
Cables Power on/off indicator light cables, Fans PMW cables/usb connection cables
PSU Form Factor 1U single PSU
Cooling System Middle: 5 x 4028(Φ40mm, thickness: 28mm)fans
Front Panel Left: Dual USB 3.0 interface
Right: Button: power on/off, Restart
Right: Led: power status/ HDD activity/ 3 network Activity/ HDD Warming/ Over Heat Warming
Material 1.2mm cold-rolled iron/SGCC
PCIe Card
Slide Rails
PSU
System Disk Holder
Hard Drive Bay
Mainboard

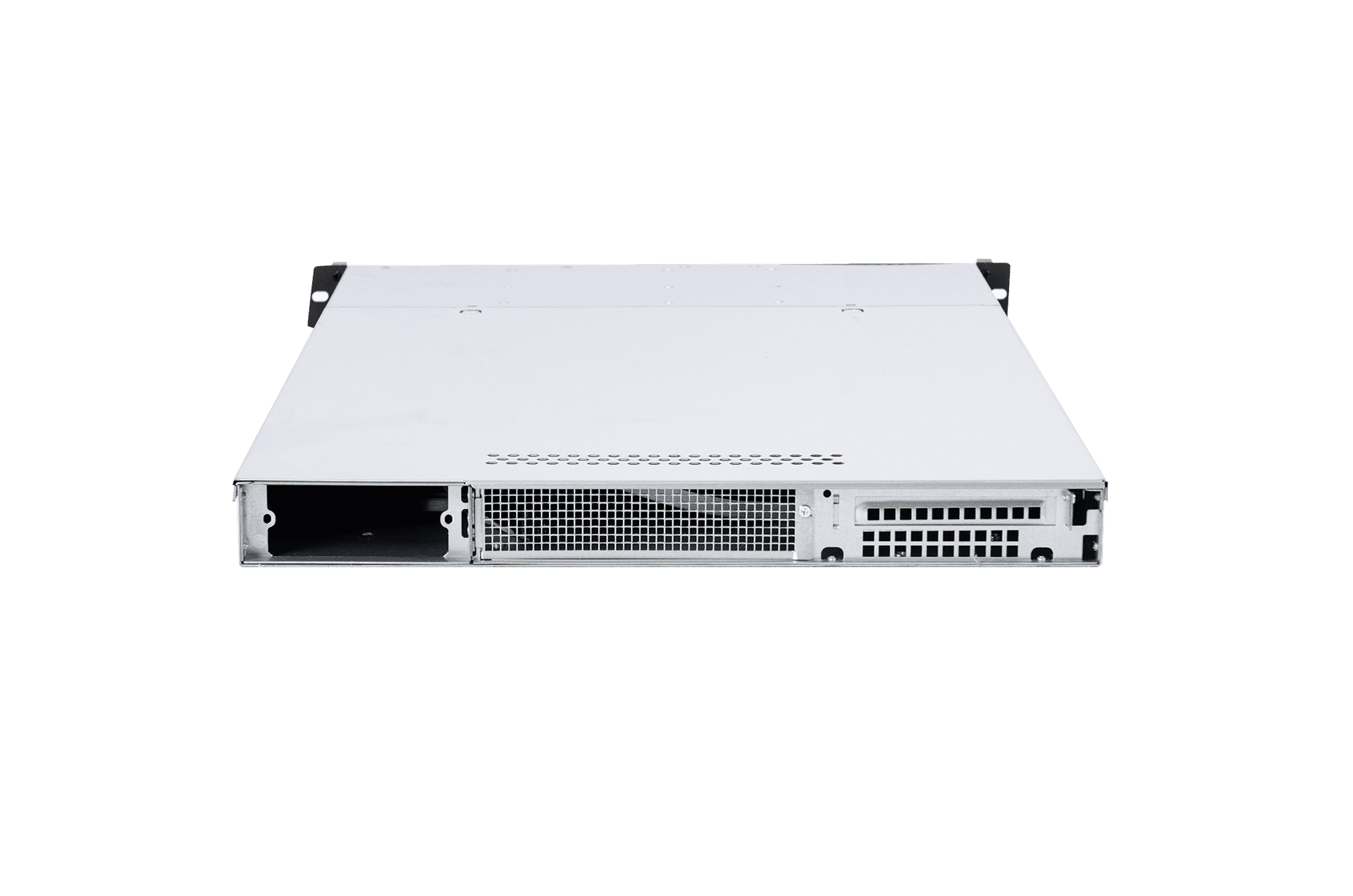

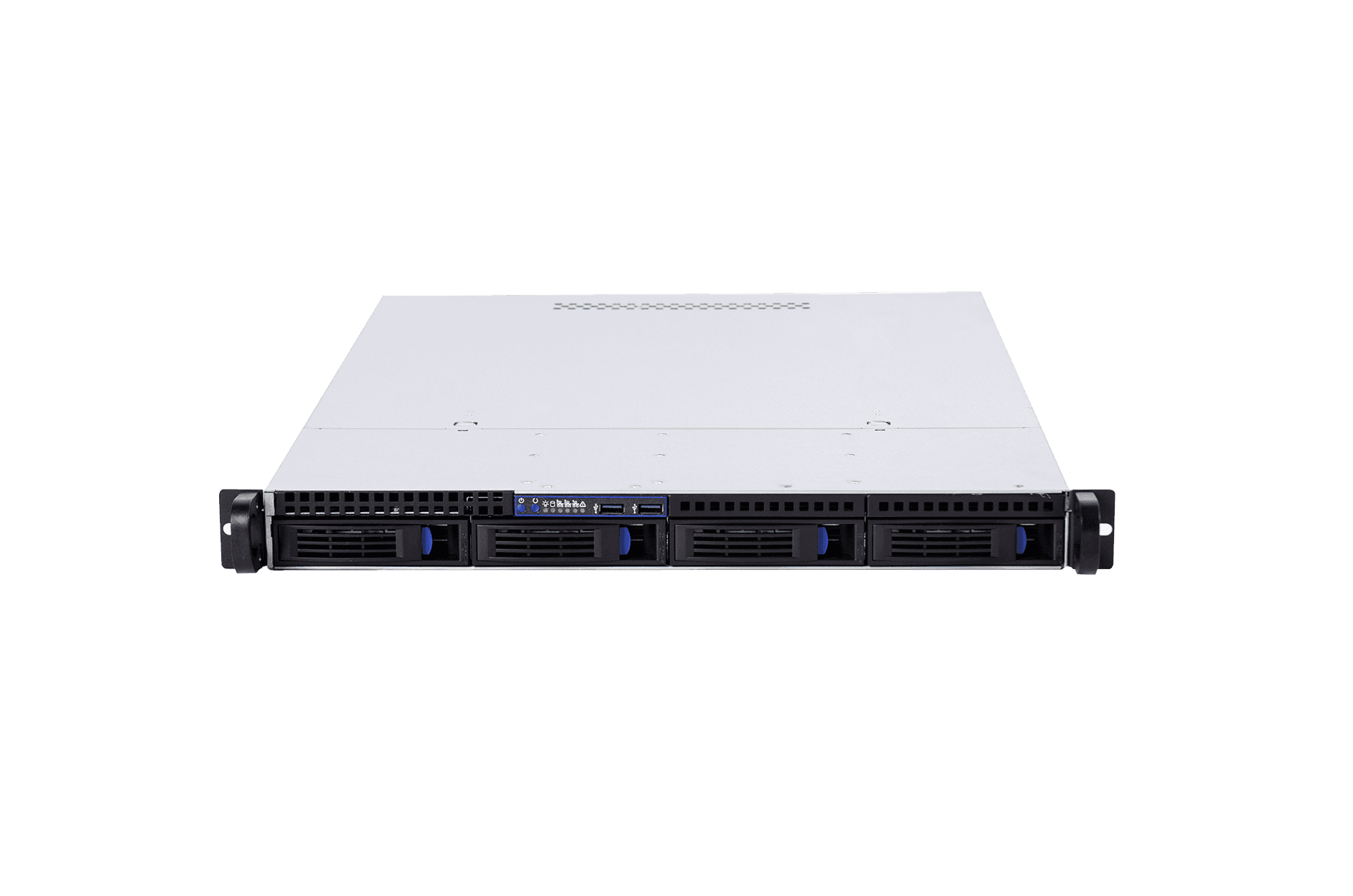

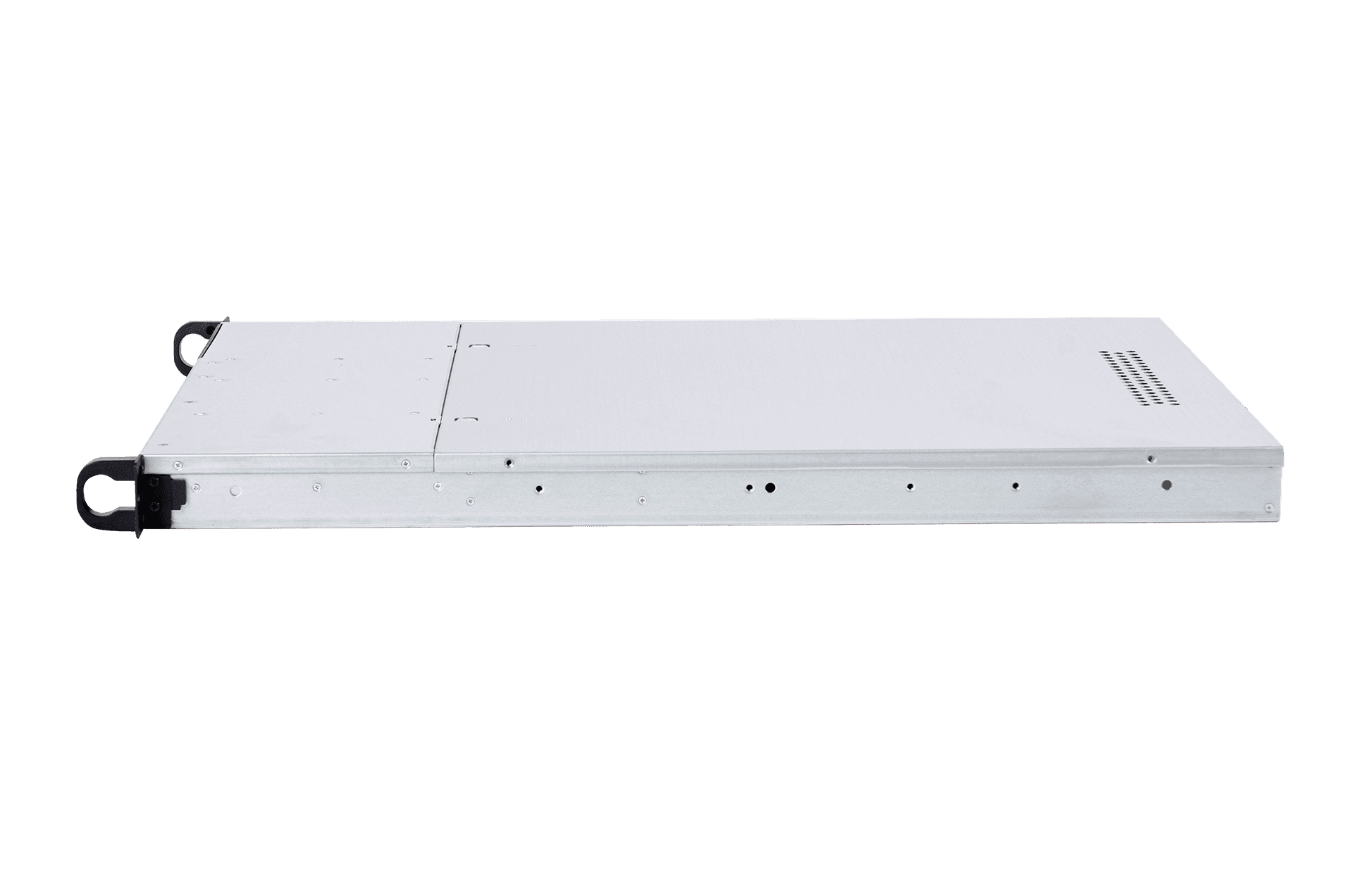

1404 Images
1404 Structure Diagram
