Server Chassis 3U 16 hard drive bays Hot-Swap for motherboard size up to 12"x13" backplane with optional MiniSAS-8087/8643/SATA interface

Model No: BCCRM3416-650S

Features:
Support MB size up to standard EEB(12‘’ x 13’’ )
6 x 3.5’’(2.5" is also compatible) hot-swap drive bays
Built-in a holder for 2*2.5’’ (or 1*3.5’’) hard drives/system disk in the middle
3 x high-performance removable cooling PWM fans in the middle
7 Full Heigh Profile
Support 2U single PSU/1+1 redundant PSU/ATX PSU/PC PSU
6gb/s backplane supports SAS/SATA/SSD/HDD
Form Factor 3U 19” standard rack-mount
Mainboard EEB (12"x13”)/CEB (12"x10.5”)/ATX (12"x9.6”)/MicroATX (9.6"x9.6")
Dimensions Height: 3.5” (88mm)
Width: 17” (433mm)
Depth: 25.6” (650mm)
Gross Weight: 19 kg
Packing(W x H x L): 845mm*570mm*215mm
Drive Bays 16*3.5”/2.5” hot-swap SAS/SATA/HDD/SSD
Additional Drive Bays Front: Left: 1 * 2.5" non hot-swap/1 * 9mm CD-ROM
Right: 2 * 2.5" non hot-swap (can update hot-swap)
Expansion Slots 7 Full Heigh Profile
Backplane 4 * 4 ports 6gb/s SATA/HDD/SSD
Backplane(optional) 4 * 1 port 12gb/s MiniSAS8087 /8643
Cables Power on/off indicator light cables, Fans PMW cables/usb connection cables
PSU Form Factor 2U single PSU/ATX PSU/PC PSU/1+1 redundant PSU
Cooling System Middle: 3 x 12025(Φ120mm, thickness: 25mm)fans
Upgradable Cooling System Front: N/A
Middle: 3*12038(Φ80mm, thickness: 38mm)fans
Rear: 2*8025(Φ80mm, thickness: 25mm)fans
Front Panel Left: Dual USB 3.0 interface(2.0 optional)
Right: Button: power on/off, Restart
Right: Led: power status/ HDD activity/ 3 network Activity/ HDD Warming/ Over Heat Warming
Material 1.2mm cold-rolled iron/SGCC
PCIe Card
Slide Rails
PSU
System Disk Holder
Hard Drive Bay
Mainboard

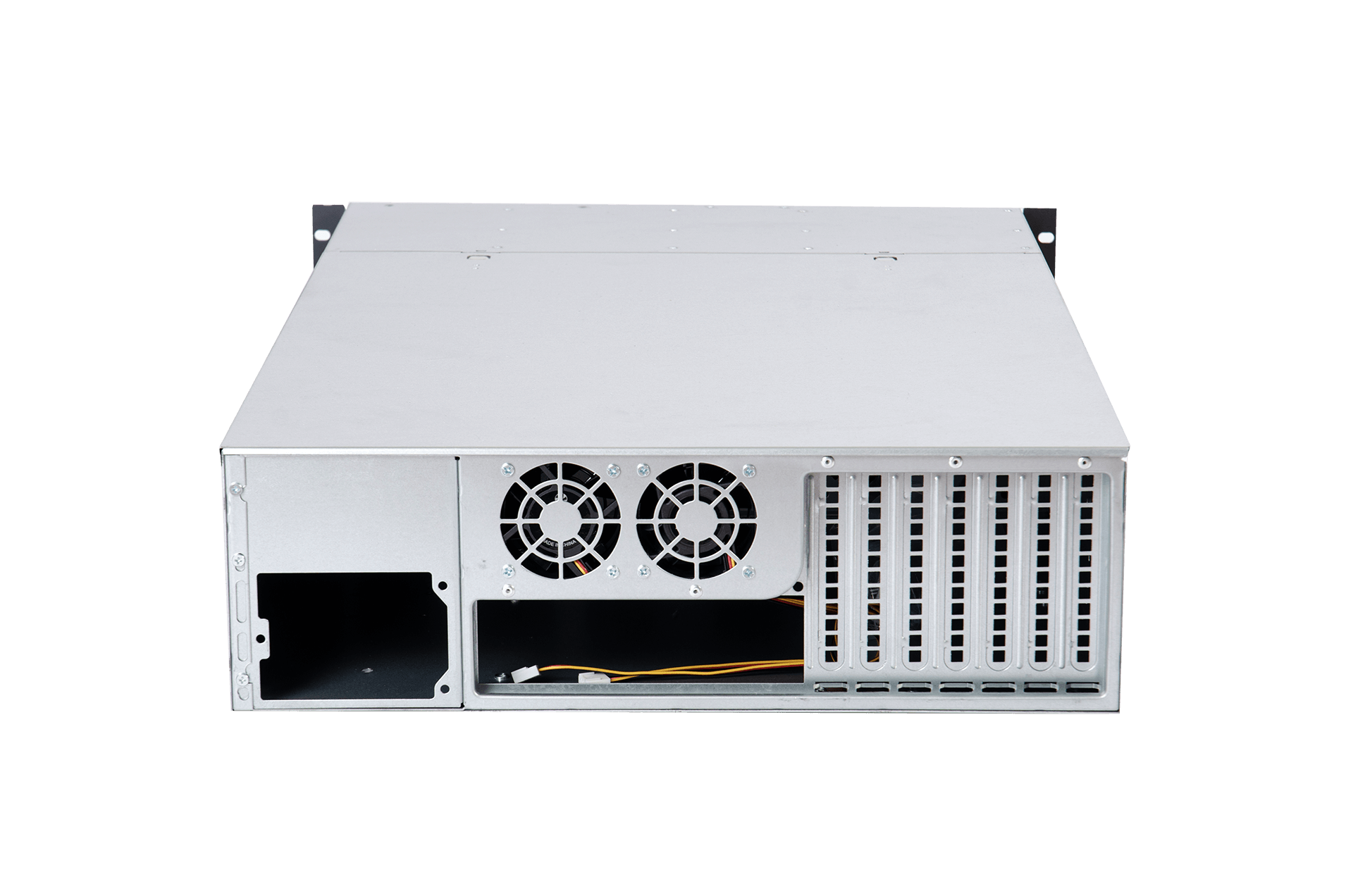

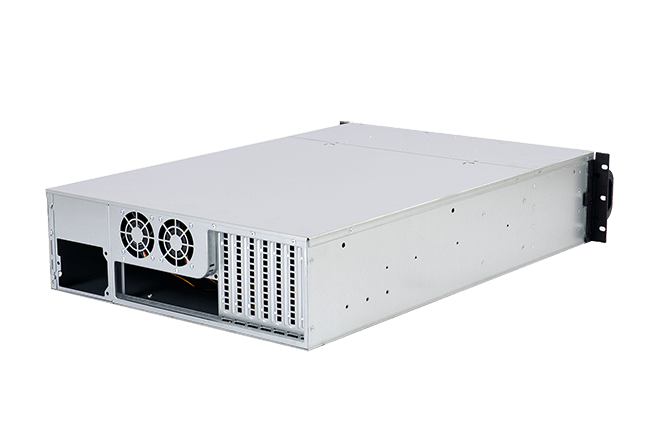

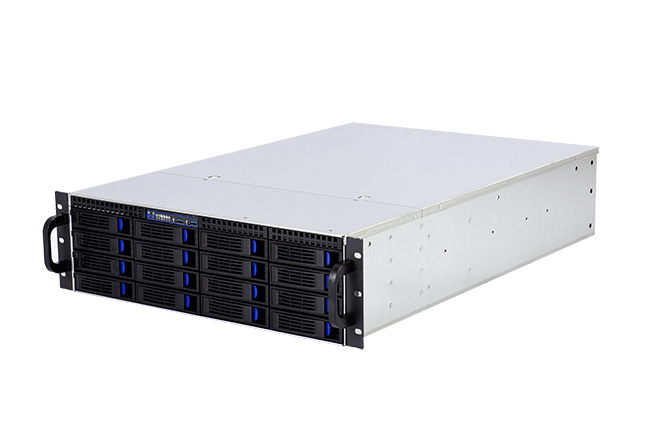

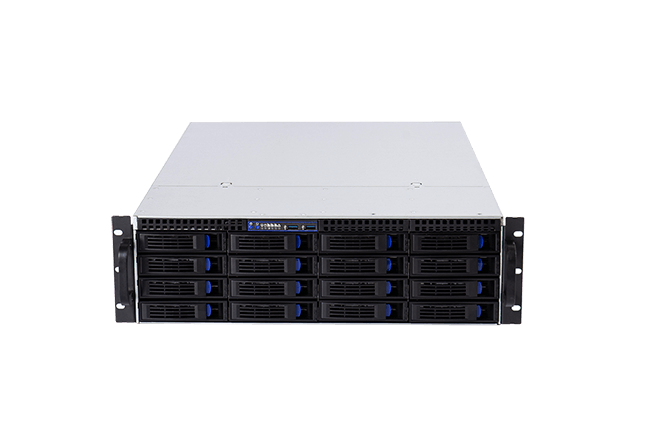

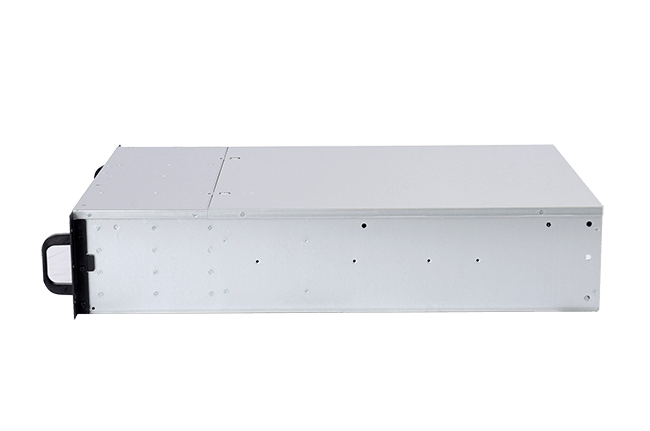

3416 Images

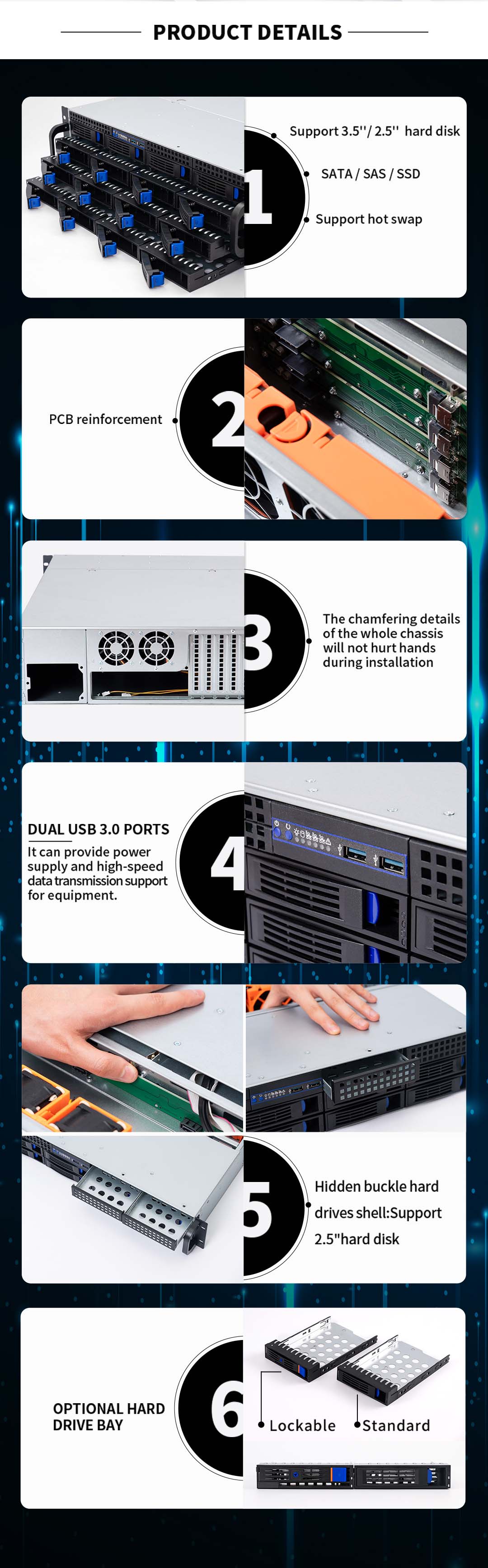

3416 Structure Diagram
