Storage Module SOHO Hot-swap 5 hard drives personal storage case

Model No: BCTCSS5

Features:
5 x 3.5’’(2.5" is also compatible) hot-swap drive bays
6gb/s backplane supports SATA/SAS
Electromagnetism shield design
Redundant 4 pin molex power connectors
Support all operating systems
Ball bearing fan with air duct
Supports RAID 0,1,5,6,19 functions(RAID and required)
Form Factor Tower chassis
Mainboard N/A
Dimensions Height: 146mm
Width: 126mm
Depth:220mm
Gross Weight: 4kg
Packing(W x H x L): 265mm*230mm*220mm
Drive Bay 5*3.5”/2.5” hot-swap SAS/SATA
Additional Drive Bays N/A
Expansion Slots N/A
Backplane 1 * 5 ports 6gb/s SATA/HDD/SSD
Backplane(optional) N/A
Cables N/A
PSU Form Factor Redundant 4pin molex power connectors
Cooling System One 80mm ball bearing fan with air duct provide excellent cooling air flow

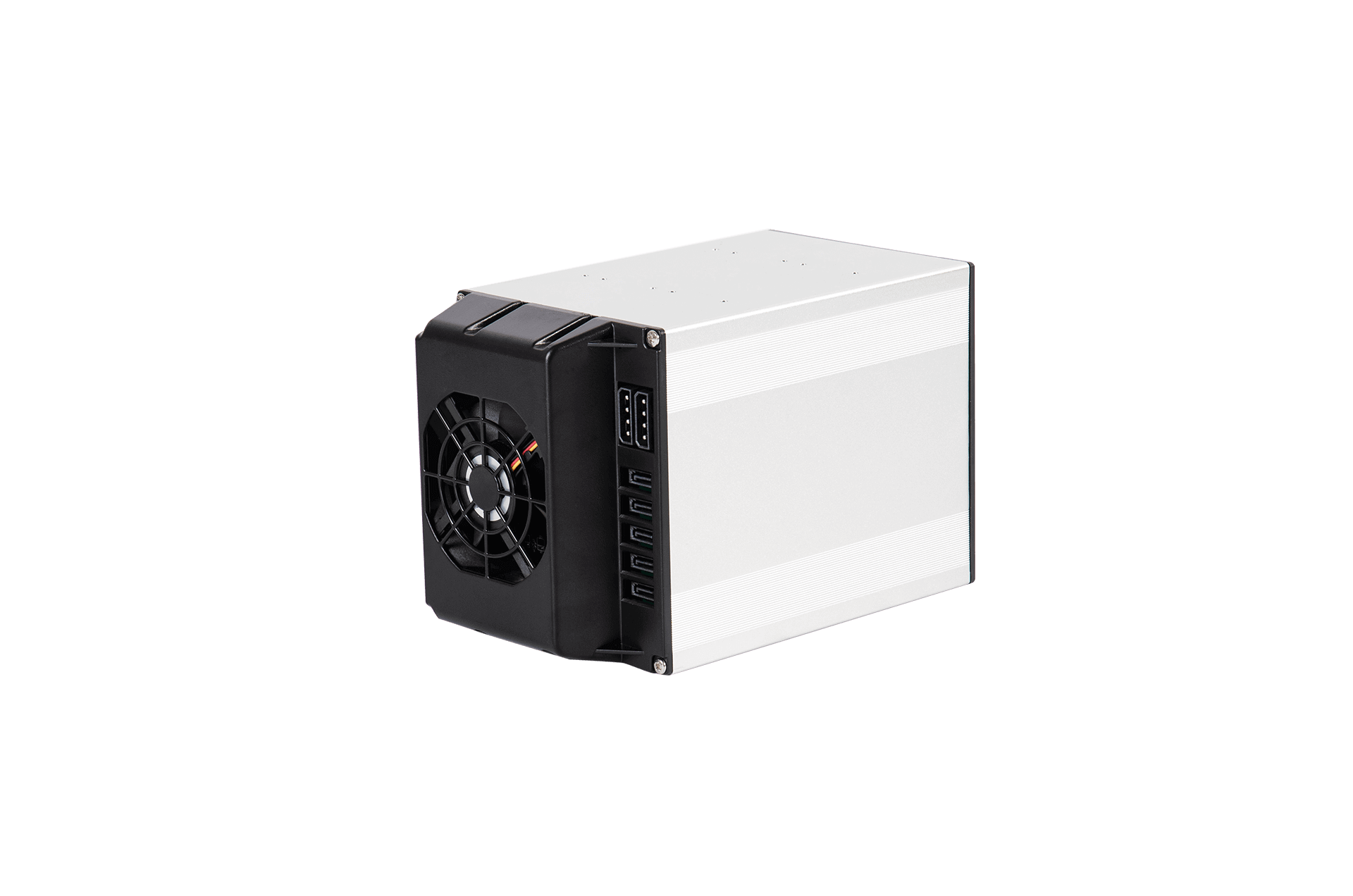

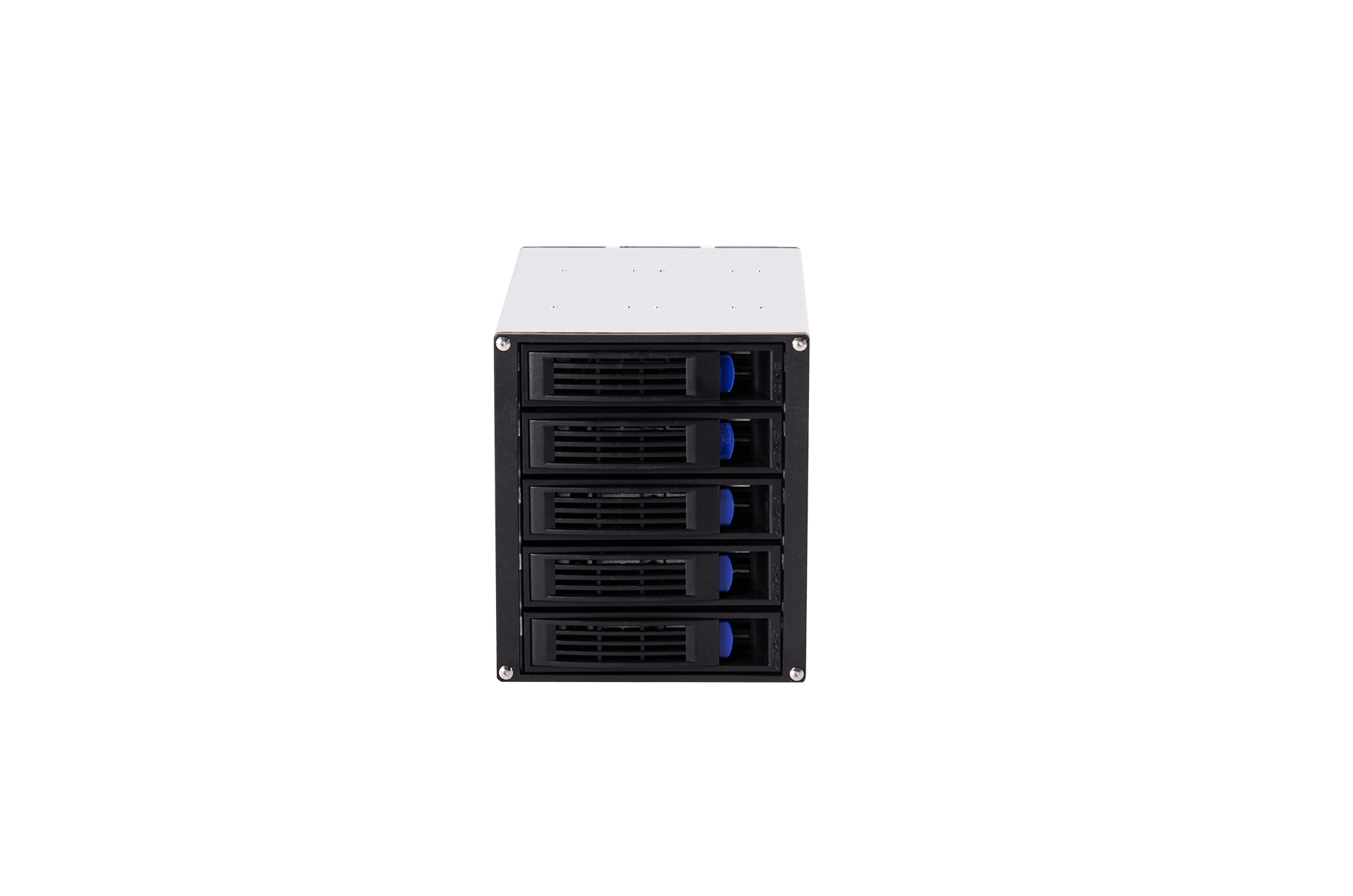

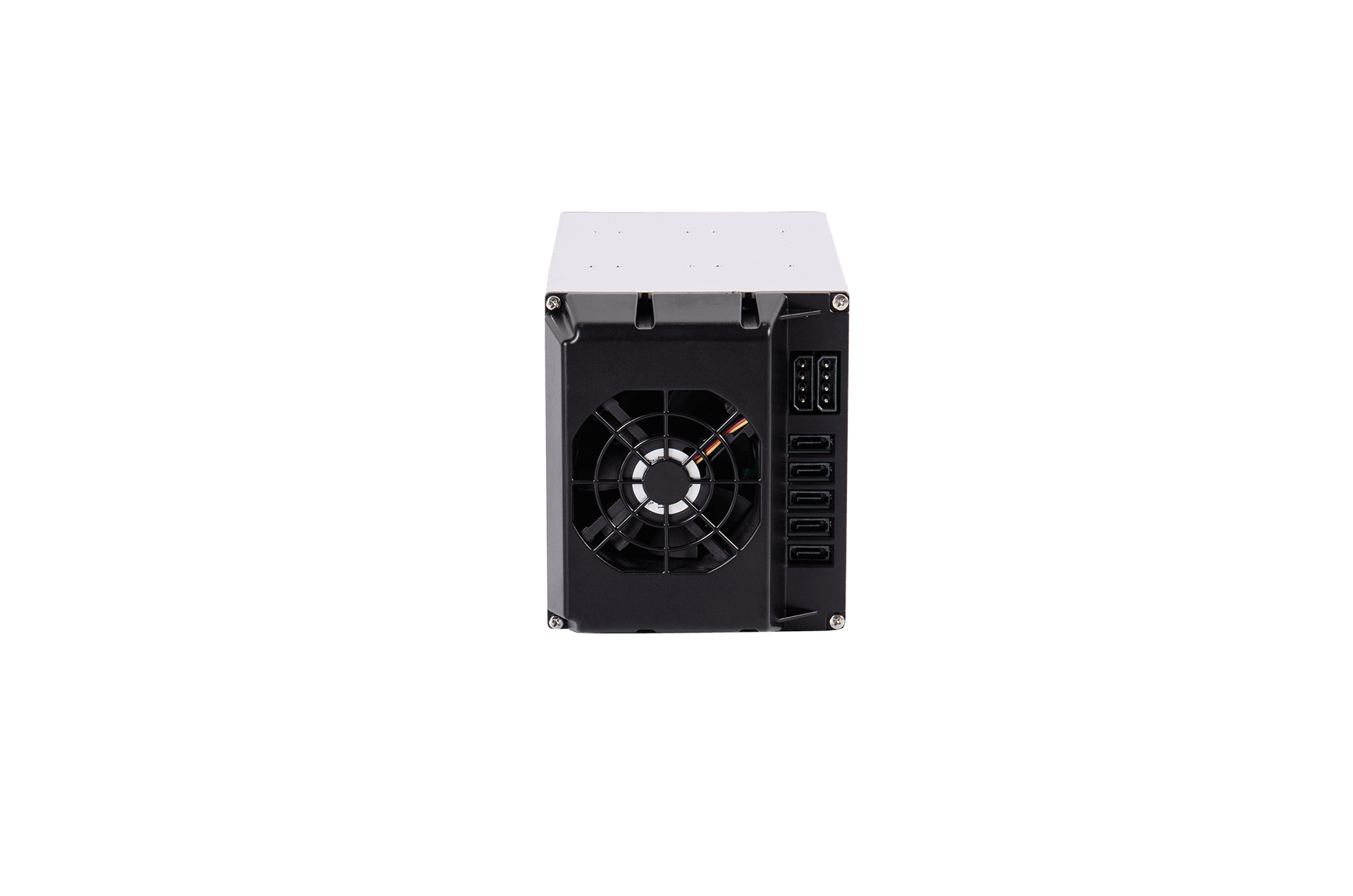

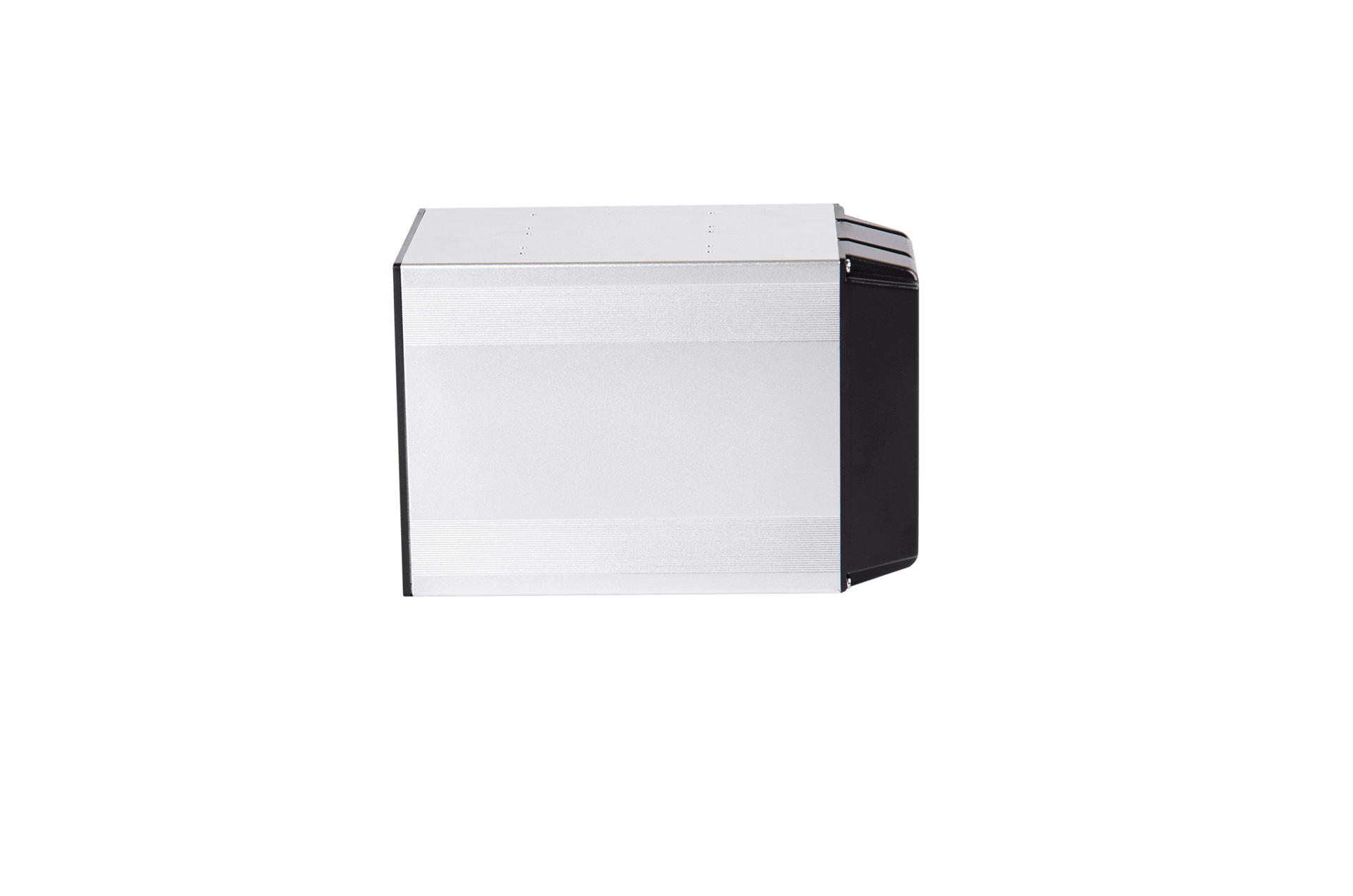

SS500 Images
